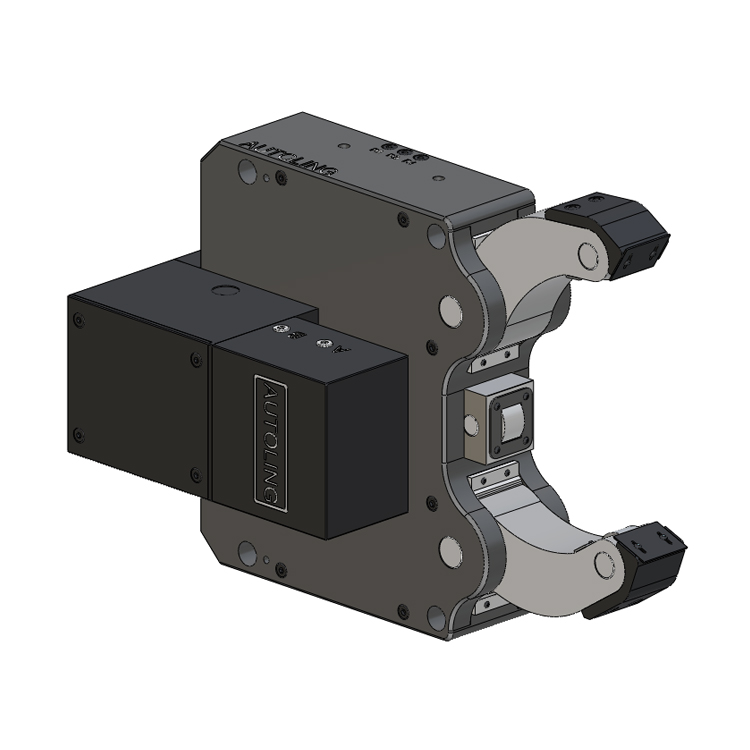

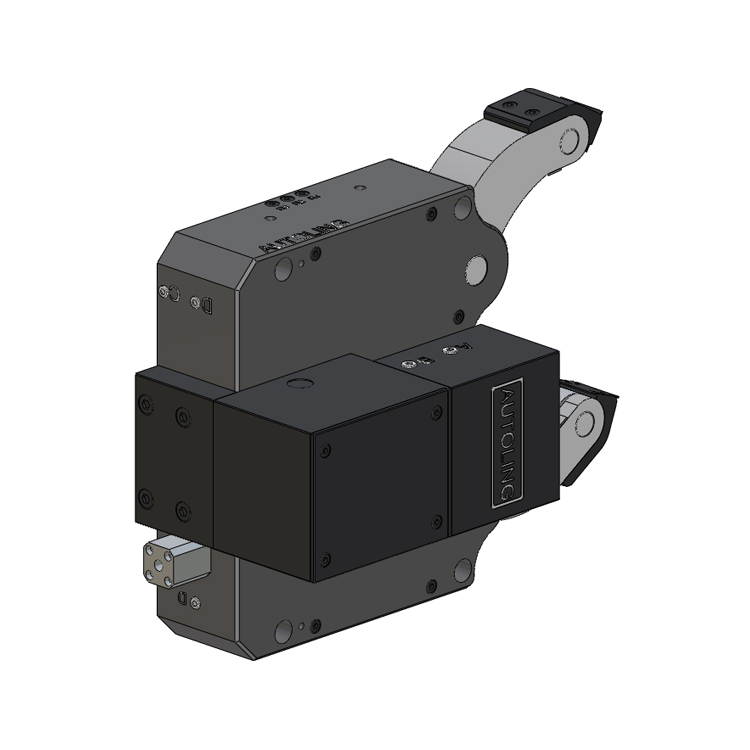

Automatic centering, side mounted hydraulic cylinder, can be installed in a narrow space, vertically loading and unloading, can effectively clean iron filings, facilitate the loading of workpieces by the robotic arm, and improve automation production efficiency.
Drainage and compressed air interface
G 1/8 "for sizes below 3.2 and G 1/4" for sizes above 4
Cylinder clamping and loosening interface
G 1/4 "for sizes below 3.2 and G 3/8 for sizes above 4
*Retain technical changes
*For more detailed information, please request drawings
| AUTOLING Model size | SCR-AB 3 | SCR-AB 3.1 | SCR-AB 4 | SCR-AB 5 | SCR-AB 6 | |
| Minimum clamping diameter | C1 | 12 | 20 | 30 | 50 | 160 |
| Maximum clamping diameter | C2 | 130 | 150 | 220 | 268 | 460 |
| Maximum opening (excluding protective cover) | C3 | 141 | 163 | 238 | 290 | 496 |
| Maximum opening (including protective cover) | C4 | 137 | 158 | 232 | 284 | 490 |
| A | 348 | 356 | 480 | 614 | 810 | |
| B | 308 | 316 | 437 | 500 | 709 | |
| C | 40 | 40 | 43 | 124 | 101 | |
| D | 290 | 290 | 400 | 450 | 680 | |
| E | 262 | 262 | 365 | 400 | 610/640 | |
| F | 135 | 135 | 240 | 270 | 330 | |
| G | 204.5 | 204.5 | 245 | 325 | 350 | |
| O | 115 | 123 | 146 | 178 | 215 | |
| Arm thickness | K | 45 | 45 | 60 | 75 | 75 |
| Roller thickness | L | 25 | 25 | 25 | 29 | 29 |
| roller diameter | M | 47 | 47 | 52 | 62 | 80 |
| P | 130 | 130 | 150 | 160 | 210 | |
| P1 | 65 | 65 | 75 | 80 | 105 | |
| P2 | 65 | 65 | 75 | 80 | 105 | |
| Fixed bolt hole diameter | S | 18 | 18 | 23 | 23 | 27 |
| T | 95 | 95 | 110 | 143 | 150 | |
| V | 91.5 | 91.5 | 128 | 160 | 175 | |
| Z | 66 | 82 | 111 | 135 | 230 | |
| Z1 | 62 | 78 | 106.5 | 130 | 225 | |
| Piston area | cm2 | 38.5 | 38.5 | 63.5 | 78.5 | 132.5 |
| Operating oil pressure min/max | bar | 8/45 | 8/45 | 8/50 | 8/50 | 10/50 |
| Maximum clamping force of the roller | dan | 1000 | 1000 | 1500 | 2000 | 3000 |
| Maximum circumferential linear speed of the roller | m/min | 800 | 800 | 720 | 650 | 525 |
| centering precision | mm | 0.04 | 0.04 | 0.05 | 0.06 | 0.06 |
| Repetitive positioning accuracy | mm | 0.007 | 0.007 | 0.007 | 0.01 | 0.01 |
| weight | kg | 55 | 55 | 115 | 190 | 500 |
*Non standard customization according to customer requirements*
