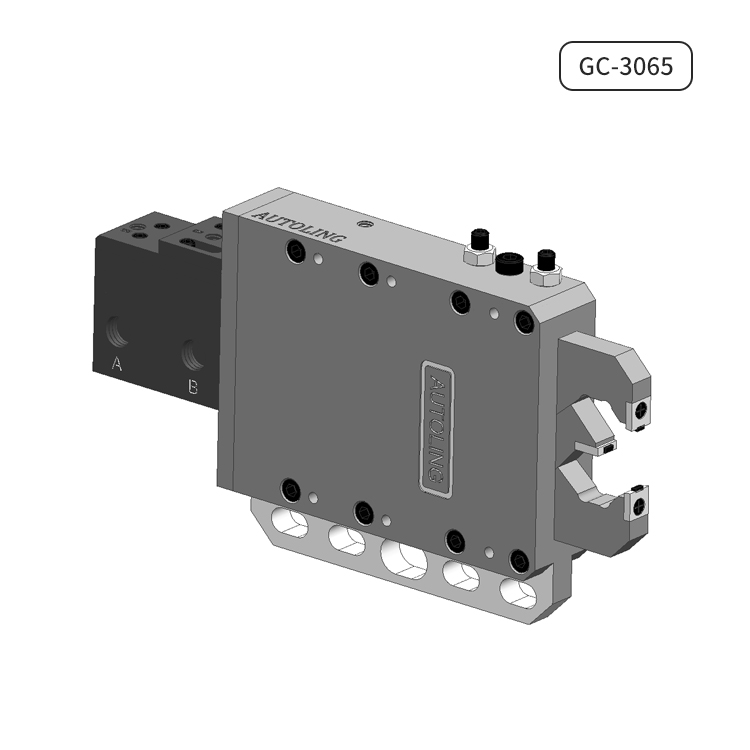

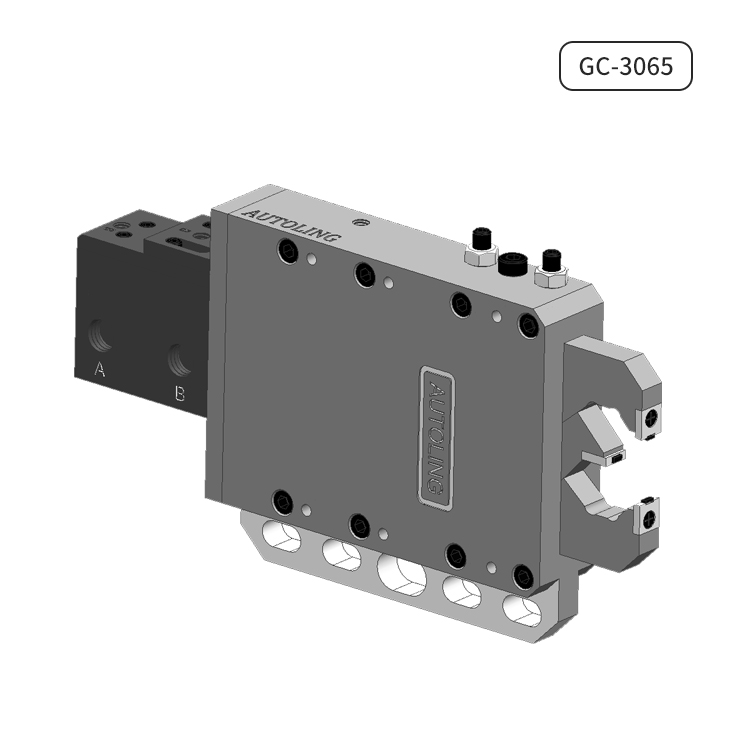

The high-precision and specially designed telescopic arm is convenient for automated vertical loading of workpieces, used for precision grinding of internal and external circles, slender shafts, camshafts, curved wheel shafts, and other workpieces. It has internal dust prevention treatment, long service life, easy maintenance, and significantly improves production efficiency.
The drainage and compressed air interface is G 1/8 ", and the lubrication interface is G 1/8". The oil cylinder interface is G 1/4 "
*Retain technical changes
*For more detailed information, please request drawings

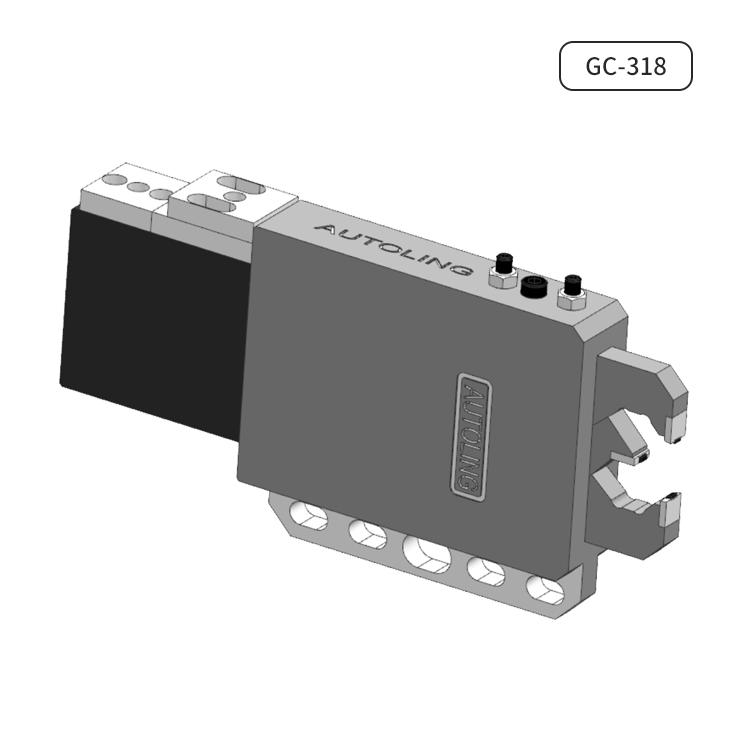

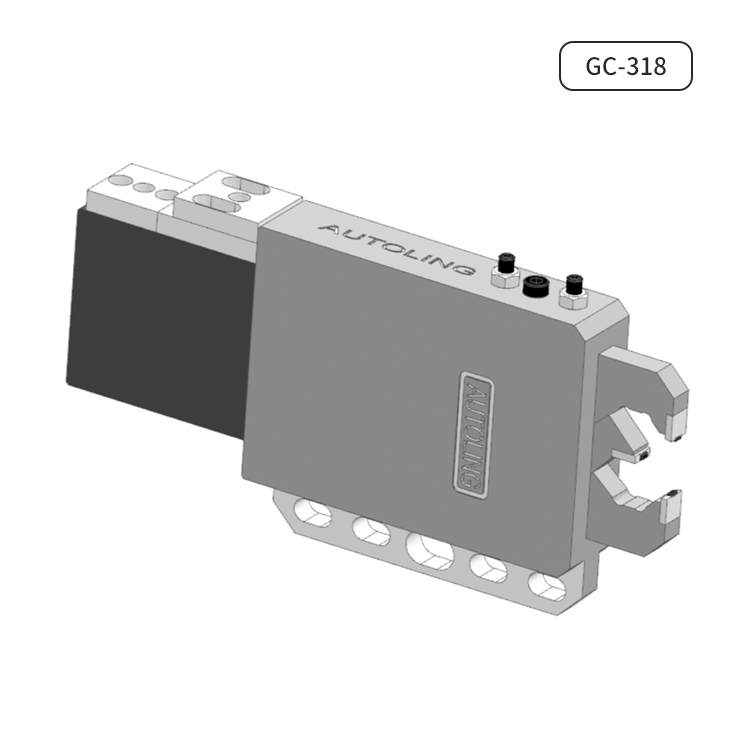

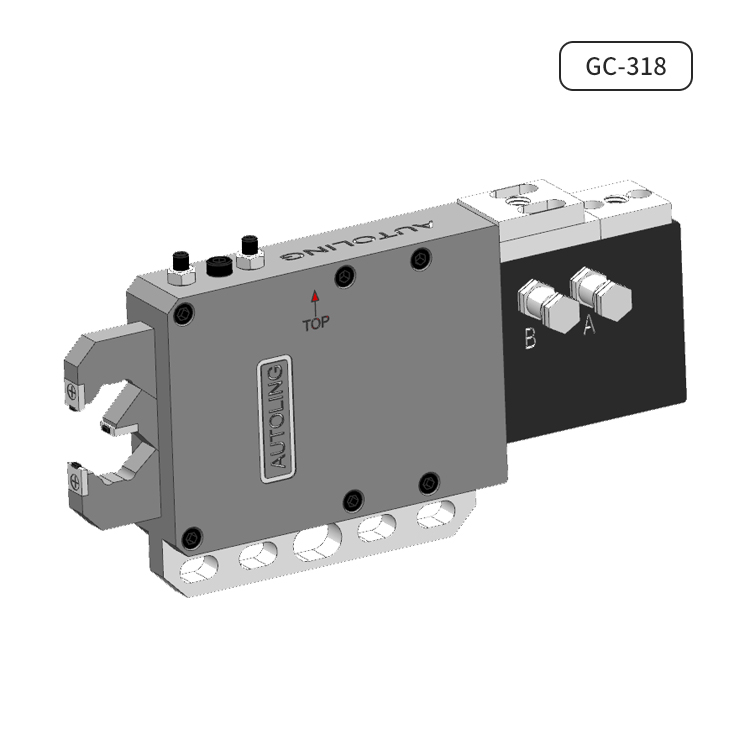

| AUTOLING Model size | GC-318 | GC- 125 | GC-235 | GC-360 | GC-460 | GC-6090 | GC-80110 | GC-100130 | |
| Minimum clamping diameter | U1 | 3 | 10 | 20 | 30 | 45 | 60 | 80 | 100 |
| Maximum clamping diameter | U2 | 18 | 25 | 35 | 60 | 60 | 90 | 110 | 130 |
| U3 | 20.6 | 29 | 38.5 | 64 | 64 | 96 | 116 | 138 | |
| A | 246 | 259 | 265 | 332 | 351 | 480 | 446 | 558 | |
| G | 30 | 30 | 40 | 60 | 62 | 62 | 55 | 55 | |
| F | 120 | 165 | 158 | 150 | 166.2 | 228 | 254 | 216 | |
| H | 70 | 35 | 95 | 100 | 95 | 125 | 125 | 108 | |
| Y | 19 | 10 | 10 | 20 | 19 | 22 | 30 | 19 | |
| C | 88 | 88 | 55.8 | 88.4 | 88.4 | 88 | 88.4 | 88 | |
| D1 | 30.5 | 30 | 25 | 31.4 | 31.8 | 33 | 32.8 | 35 | |
| D2 | 30.5 | 30 | 25 | 27.4 | 27.3 | 27.8 | 28.7 | 28 | |
| D3 | 30.5 | 30 | 25 | 27.3 | 27.4 | 27.6 | 27.6 | 27.6 | |
| D4 | 30.5 | 30 | 25 | 31.7 | 31.7 | 31.7 | 31.7 | 31.7 | |
| O | 45 | 39.5 | 62 | 70 | 70 | 85 | 116 | 150 | |
| K | 10 | 10 | 18 | 20 | 19 | 22 | 30 | 19 | |
| P | 31 | 16 | 36.7 | 22 | 42 | 53.5 | 55 | 44 | |
| P1 | 70 | 35 | 35 | 44 | 42 | 43 | 42 | 43 | |
| P2 | 55 | 35 | 35 | 44 | 35 | 35 | 35 | 35 | |
| S | 13.5 | 13.5 | 9 | 12.5 | 12.4 | 12.5 | 12.5 | 12.5 | |
| S1 | 7 | 7 | 7 | 14 | 12 | 12 | 12 | 12 | |
| T | 30 | 29 | 14 | 58 | 26 | 62 | 70 | 30 | |
| V | 30 | 16 | 22 | 40 | 42 | 53.5 | 55 | 105 | |
| X | 10 | 10 | 10 | 20 | 13 | 19 | 15 | 19 | |
| Piston area | cm2 | 7.85 | 12.6 | 2.01 | 7.07 | 7.07 | 7.07 | 7.07 | 7.07 |
| Operating oil pressure min/max | bar | 5/30 | 5/30 | 5/30 | 5/30 | 5/30 | 5/30 | 5/30 | 5/30 |
| Repetitive positioning accuracy | ±/mm | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 |
| weight | kg | 4.2 | 4.5 | 4.8 | 11 | 11.8 | 33 | 46 | 62 |
*Non standard customization according to customer requirements*
